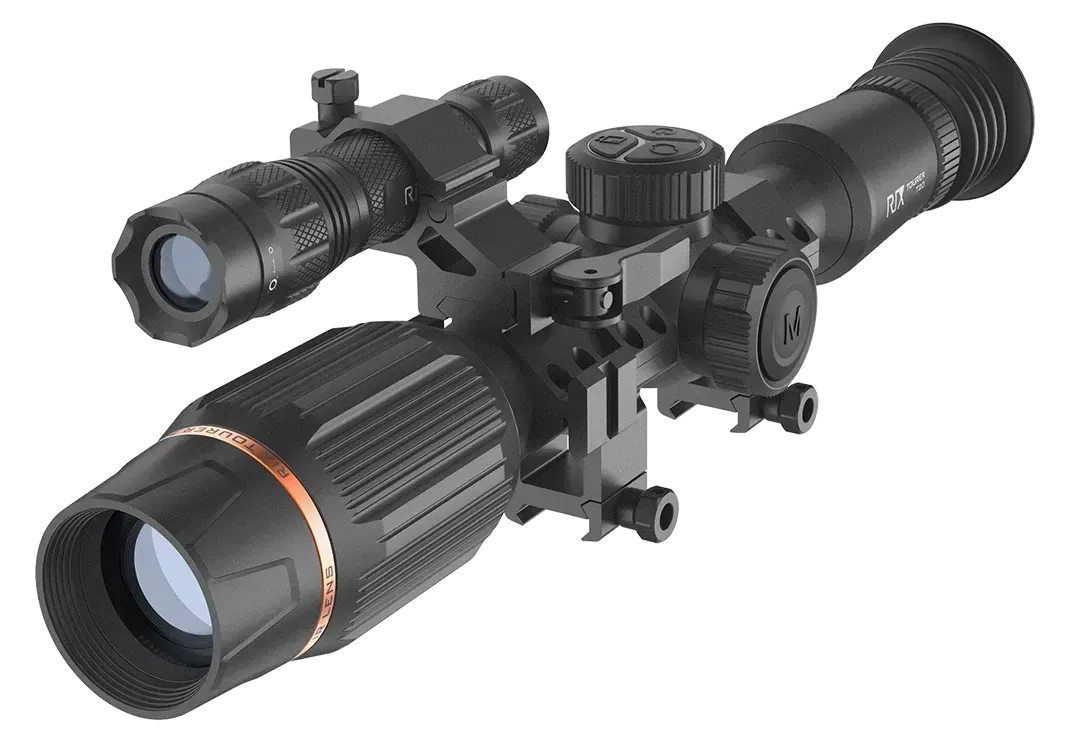

RIX TOURER 20 DIGITAL NIGHT VISION

Sensor Specifications

Resolution, pixels

1920×1080

Pixel Pitch, μm

2.9

Optical Specifications

Objective Lens, mm

50mm; F1.4

Field of view, degrees / yd @ 100 yd

4.8°/8.4yd

Optical Zoom, ×

3.5 to 14.0

Digital Zoom, ×

1 to 4

Eye Relief, mm

50

Diopter Adjustment, D

-5 to +5

Detection Range, m/yd

274/300

Display Specifications

Type

OLED

Resolution, pixels

1024 × 768

Wi-Fi

Wi-Fi / APP

Support (RIX+)

Video Recorder

Video Recorder

Support

Memory Capacity, GB

4 to 256GB

Physical Specifications

Degree of Protection, IP code

IP68

Operating Temperature Range, °F

-4 to +122

Weight, lb

2.09

Dimension, inch

15.3×3.2×2.8

Body Material

Aluminum

Connections and Compatibilities

Battery Type

Built-in battery pack

Max. Operating Time(at t=72°F)*, h

14

External Power Supply, V

5V (Type C USB)

Max Recoil Power on Rifled Weapon (Eo), g/Joules

1500g/9000Joules

Aim Point, MOA/CLICK

0.28 (3.2in@100yd)

Compatible Mounts

30mm rings

Function

IR Illuminator, nm

850 / 940

IR Power, w

5
